Sybase replication system

These components are required to implement a Sybase replication system for Oracle:

A primary Oracle data server
A replicate Oracle data server
The Replication Server Heterogeneous Edition components:
- Replication Agent
- Replication Server
- ECDA Option for Oracle

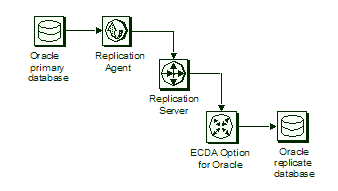

Figure 1-1 illustrates a Sybase replication system with Oracle servers. It shows the flow of data between the data servers and the Replication Agent, Replication Server, and ECDA database gateway.

Figure 1-1: Sybase replication system for Oracle

Sybase replication system components: Oracle primary database, Replication Agent, Replication Server, ECDA Option for ODBC, and Oracle replicate database.
