The following figure illustrates the use of the Mainframe Connect IPS components in a three-tier, gateway-enabled environment. IPS components are noted in bold type.
Mainframe Client Connect (MCC) is no longer being provided
or supported. Consequently, the Client Option can be used only in
a two-tier environment. Sybase recommends that you migrate any Client
Option applications from a three-tier (gateway-enabled) environment using
SNA to a two-tier environment using TCP.

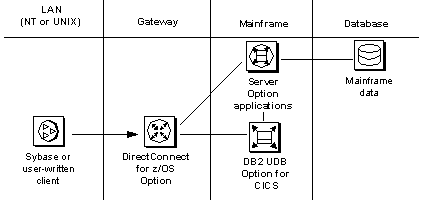

Figure 1-1: Gateway-enabled (with DirectConnect for z/OS Option)
The three-tier, gateway-enabled environment employs a DirectConnect for z/OS Option gateway for communication between LAN applications and the mainframe.
